Electronics and Wiring

This IP67 rated borescope camera has a custom 1m focal distance. The USB cable comes in both 5m (Genesis) and 6.5m (Genesis XL) lengths.

This partial kit includes four NEMA 17 stepper motors with pre-mounted rotary encoders and the motor and encoder cables for connecting to the Farmd...

These NEMA 17 stepper motors come with pre-mounted rotary encoders. They are sold individually, and do not include any wiring harnesses. For a comp...

These 4-wire cables connect each NEMA 17 stepper motor to the Farmduino. They are labelled on the Farmduino end X1, X2, Y, and Z. Sold individually...

These cables connect the four rotary encoders to the Farmduino. They are labelled on the Farmduino end X1, X2, Y, and Z. Sold individually and as a...

The Farmduino is an electronics board that combines the functionality of an Arduino MEGA 2560 microcontroller and a RAMPS shield. It features a boa...

This 12V vacuum pump sucks air through the seeder's luer lock needle in order to suction-hold a seed on the needle tip during planting. Compatible...

The Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straight...

The v1.4 UTM comes completely pre-assembled so you can simply mount it on the z-axis and plug in the UTM cable. It features a custom matte-black PC...

This 12V solenoid valve controls the flow of water from your garden hose to FarmBot's tubing. Compatible with v1.2 and v1.3 kits. Inlet: 3/4" NPT...

This cable connects the solenoid valve to the Farmduino. For Genesis v1.3 kits, a 3m long cable is used. For Genesis and Genesis XL v1.4 kits, a 0....

These connect the Grounded electronic pin to the Digital In pin, allowing FarmBot to detect when a tool has been mounted or dismounted correctl...

This 12-wire cable connects the Farmduino to the UTM. It provides Ground, 5V, digital and analog I/O, and can be configured at the Farmduino to pro...

This cable connects the vacuum pump to the Farmduino. Lengths: 4.3m (Genesis) and 5.8m (Genesis XL) Gauge: 18 AWG Wire Type: Stranded copp...

This rainproof box protects FarmBot's electronics from rain and debris. It features an easy-to-use tool-less double latch design for quickly openin...

This 24V vacuum pump sucks air through the seeder's luer lock needle in order to suction-hold a seed on the needle tip during planting. Compatible...

These short wires connect the soil sensor PCB to the M3 electronic screws on the soil sensor base. Sold as a set of three (one of each color) ...

This USB cable provides power to the Raspberry Pi from the Farmduino's built-in 12v to 5v to USB circuitry. Connector 1: Right-angle USB 2.0 T...

Connects the Raspberry Pi to the Borescope Camera. Connector 1: Right-angle USB 2.0 Type A Male Connector 2: USB 2.0 Type A Femal...

This IP67 rated waterproof power supply features a standard 3-prong US power plug for the input and a waterproof screw-together connector for the o...

These hollow plastic chains are used throughout FarmBot to manage cables and tubing along each of the three axes. The various lengths are sold indi...

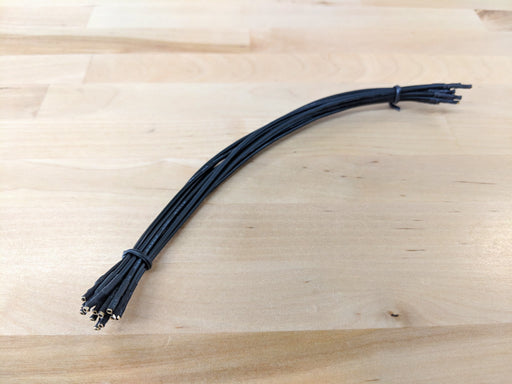

Use these jumper wires to connect the UTM headers on Farmduino to other pins such as I2C, PWM, or more digital or analog I/O. Sold in packs of 12. ...

This 24V solenoid valve controls the flow of water from your garden hose to FarmBot's tubing. Compatible with v1.4 kits. Inlet: 3/4" NPT (Nationa...

These drivers convert step and direction signals from the microcontroller (Farmduino) into powerful electrical pulses sent to the NEMA 17 stepper m...

This 12-wire cable connects the Farmduino to the UTM. It provides Ground, 5V, digital and analog I/O, and can be configured at the Farmduino to pr...

This USB cable is used as a serial connection between the Raspberry Pi and the Farmduino Connector 1: Right-angle USB 2.0 Type A Male ...

This is the "host computer" of FarmBot. You might also call it FarmBot's brain. The Raspberry Pi runs FarmBot OS, communicates with the web applica...

This acrylic plate allows you to mount the v1.3 Farmduino and Raspberry Pi 3 into the v1.3 Electronics Box. Note: the plate comes with a brown prot...

These extra leads make it easy to connect new, additional peripherals to the Farmduino. Sold in packs of 2. Compatible with v1.3 and v1.4 Farmduino...

The v1.4 Farmduino board features an Arduino MEGA 2560 microcontroller that interfaces with the Raspberry Pi, pulses the stepper drivers, and contr...

The microSD card holds FarmBot OS and is inserted into the Raspberry Pi. Exact packaging may vary. Form Factor: MicroSD Capacity:...

The v1.3 Electronics Box is shipped pre-assembled. Included is the supergland for the v1.3 cables. Note that the electronics mounting plate is not ...

This shield is mounted on top of Arduino MEGA 2560 microcontrollers and supports up to 5 stepper drivers. This is for v1.2 FarmBot kits.

This is the microcontroller in all v1.2 FarmBots. It receives G-code commands from the Raspberry Pi and then sends signals to move motors, read sen...

Use this power cord protector to shield the connection between the power supply and an extension cord from the weather. Color: Green Rainproo...

This LED strip is strung through the gantry's horizontal cable carrier supports so that you can light up your garden at night to show friends or fo...

Mount these light-up waterproof push buttons into any electronics box panel, or a control panel of your own! You can then configure them with the F...

Trade Name: UBEC DC/DC Step-Down (Buck) Converter Input Voltage: 6-23V Output Voltage: 5V (+-5%) Output Current: 3A continuous, 5A p...

Mount these LED indicator lights into any electronics box panel, or a control panel of your own! You can turn them on and off from the FarmBot web ...

Used to connect two wires together. Sold in packs of 2.
