Gantry Columns

Original price $15.00 - Original price $15.00
Original price $15.00
$15.00
$5.00 - $15.00
Current price $15.00
Color: Silver

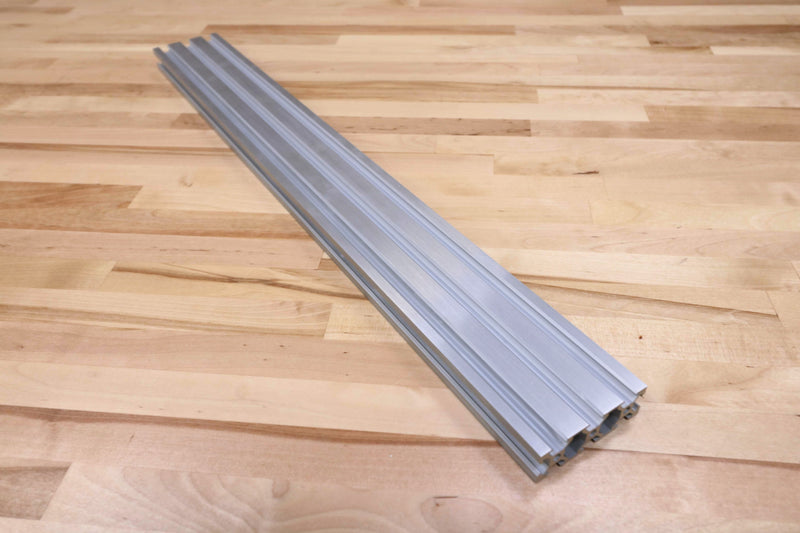

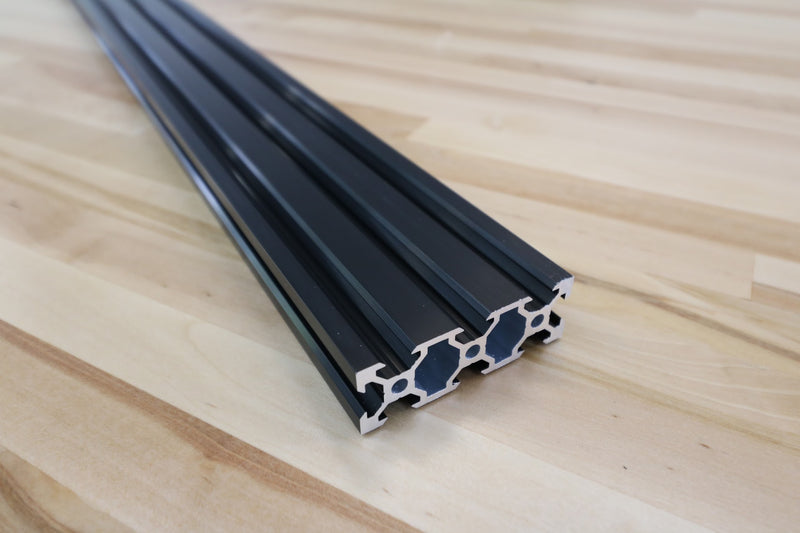

The gantry columns are made from aluminum extrusions. They can be scaled to be taller or shorter to satisfy your needs. The two large spaces inside the columns are used to conceal and protect the GT2 timing belts that run along the tracks and up to the gantry pulleys. Note: gantry columns are sold individually. You will need two for a standard FarmBot.

Length: 500mm
Profile: 20mm x 60mm V-Slot
Material: 6063-T5 Aluminum
Surface Treatment: Black or Silver anodized
Mass: 0.571kg
Volume: 209.7cm3
